라즈베리파이3) 스위치 누르면 RGB LED색깔 바꾸기

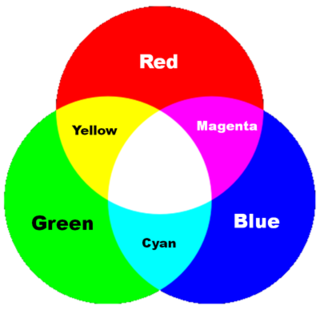

- 색상 참고





- 스위치 누르면  RGB LED색깔 바꾸기

(nputIO == False and count== 0 조건에서 count가 +1되는 순간 그 다음 조건문 실행이 너무 빨라서

time.sleep(1)을 추가하였음.)

import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM) #GPIO.BOARD
GPIO.setwarnings(False)

BUTTON= 21
LED_R = 13
LED_G = 19
LED_B = 26

GPIO.setup(BUTTON, GPIO.IN)
GPIO.setup(LED_R, GPIO.OUT)
GPIO.setup(LED_G, GPIO.OUT)
GPIO.setup(LED_B, GPIO.OUT)

count = 0

try:
    while True:
        inputIO = GPIO.input(BUTTON)

        if  inputIO == False and count== 0:
            print("RED")
            GPIO.output(LED_R, GPIO.HIGH)
            GPIO.output(LED_G, GPIO.LOW)
            GPIO.output(LED_B, GPIO.LOW)
            time.sleep(1)
            count +=1

        elif inputIO == False and count== 1:
             print("GREEN")
             GPIO.output(LED_R, GPIO.LOW)
             GPIO.output(LED_G, GPIO.HIGH)
             GPIO.output(LED_B, GPIO.LOW)
             time.sleep(1)
             count +=1

        elif inputIO == False and count== 2:
             print("BLUE")
             GPIO.output(LED_R, GPIO.LOW)
             GPIO.output(LED_G, GPIO.LOW)
             GPIO.output(LED_B, GPIO.HIGH)
             time.sleep(1)
             count +=1

        elif inputIO == False and count== 3:
             print("YELLOW")
             GPIO.output(LED_R, GPIO.HIGH)
             GPIO.output(LED_G, GPIO.HIGH)
             GPIO.output(LED_B, GPIO.LOW)
             time.sleep(1)
             count +=1

        elif inputIO == False and count== 4:
             print("MAGENTA")
             GPIO.output(LED_R, GPIO.HIGH)
             GPIO.output(LED_G, GPIO.LOW)
             GPIO.output(LED_B, GPIO.HIGH)
             time.sleep(1)
             count +=1

        elif inputIO == False and count== 5:
             print("CYAN")
             GPIO.output(LED_R, GPIO.LOW)
             GPIO.output(LED_G, GPIO.HIGH)
             GPIO.output(LED_B, GPIO.HIGH)
             time.sleep(1)
             count +=1

        elif inputIO == False and count== 6:
             print("WHITE")
             GPIO.output(LED_R, GPIO.HIGH)
             GPIO.output(LED_G, GPIO.HIGH)
             GPIO.output(LED_B, GPIO.HIGH)
             time.sleep(1)
             count +=1

        else:
            print("NO LED")
            GPIO.output(LED_R, GPIO.LOW)
            GPIO.output(LED_G, GPIO.LOW)
            GPIO.output(LED_B, GPIO.LOW)

except KeyboardInterrupt:
    GPIO.output(LED_R, GPIO.LOW)
    GPIO.output(LED_G, GPIO.LOW)
    GPIO.output(LED_B, GPIO.LOW)
    GPIO.cleanup()





-위의 코드 반복실행

import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM) #GPIO.BOARD
GPIO.setwarnings(False)

BUTTON= 4
LED_R = 5
LED_G = 6
LED_B = 13

GPIO.setup(BUTTON, GPIO.IN)
GPIO.setup(LED_R, GPIO.OUT)
GPIO.setup(LED_G, GPIO.OUT)
GPIO.setup(LED_B, GPIO.OUT)

count = 0

try:
    while True:
        inputIO = GPIO.input(BUTTON)

        if  inputIO == True and count== 0:
            print("RED")
            GPIO.output(LED_R, GPIO.HIGH)
            GPIO.output(LED_G, GPIO.LOW)
            GPIO.output(LED_B, GPIO.LOW)
            time.sleep(0.2)
            count +=1

        elif inputIO == True and count== 1:
             print("GREEN")
             GPIO.output(LED_R, GPIO.LOW)
             GPIO.output(LED_G, GPIO.HIGH)
             GPIO.output(LED_B, GPIO.LOW)
             time.sleep(0.2)
             count +=1

        elif inputIO == True and count== 2:
             print("BLUE")
             GPIO.output(LED_R, GPIO.LOW)
             GPIO.output(LED_G, GPIO.LOW)
             GPIO.output(LED_B, GPIO.HIGH)
             time.sleep(0.2)
             count +=1

        elif inputIO == True and count== 3:
             print("YELLOW")
             GPIO.output(LED_R, GPIO.HIGH)
             GPIO.output(LED_G, GPIO.HIGH)
             GPIO.output(LED_B, GPIO.LOW)
             time.sleep(0.2)
             count +=1

        elif inputIO == True and count== 4:
             print("MAGENTA")
             GPIO.output(LED_R, GPIO.HIGH)
             GPIO.output(LED_G, GPIO.LOW)
             GPIO.output(LED_B, GPIO.HIGH)
             time.sleep(0.2)
             count +=1

        elif inputIO == True and count== 5:
             print("CYAN")
             GPIO.output(LED_R, GPIO.LOW)
             GPIO.output(LED_G, GPIO.HIGH)
             GPIO.output(LED_B, GPIO.HIGH)
             time.sleep(0.2)
             count +=1

        elif inputIO == True and count== 6:
             print("WHITE")
             GPIO.output(LED_R, GPIO.HIGH)
             GPIO.output(LED_G, GPIO.HIGH)
             GPIO.output(LED_B, GPIO.HIGH)
             time.sleep(0.2)
             count = 0

        else:

            GPIO.output(LED_R, GPIO.LOW)
            GPIO.output(LED_G, GPIO.LOW)
            GPIO.output(LED_B, GPIO.LOW)

except KeyboardInterrupt:
    GPIO.output(LED_R, GPIO.LOW)
    GPIO.output(LED_G, GPIO.LOW)
    GPIO.output(LED_B, GPIO.LOW)
    GPIO.cleanup()
