라즈베리파이 본격수업 2일차 (오전)

1. 초음파 센서 사용하기



blog.naver.com/roboholic84/220319850312

[라즈베리파이 강좌] 라즈베리파이로 초음파센서 사용하기 - python편

1) 초음파 센서를 이용하여 거리 출력하기

import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)
TRIG = 23
ECHO = 24
GPIO.setup(TRIG, GPIO.OUT)
GPIO.setup(ECHO, GPIO.IN)

def getDistance():
    GPIO.output(TRIG, False)
    time.sleep(1) #1초마다 값을 냄
    GPIO.output(TRIG, True)
    time.sleep(0.00001)
    GPIO.output(TRIG, False)

    while GPIO.input(ECHO) == 0:
        pulse_start = time.time()
    while GPIO.input(ECHO) == 1:
        pulse_end = time.time()

    pulse_duration = pulse_end - pulse_start
    distance= round(pulse_duration*17150,2)

    return distance

if __name__ == '__main__':
    try:
        while True:
            distance_value = getDistance()
            if distance_value > 2 and distance_value < 300:
                print("Distance is %.2f cm"%distance_value)
            else:
                print("Out of Range")
    except KeyboardInterrupt:
        GPIO.cleanup()



2) 초음파 센서를 이용하여 거리 출력하기 ( out of range: RED LED ON, range: GREEN LED ON)

import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)
TRIG = 23
ECHO = 24
LED_R = 13
LED_G = 19

GPIO.setup(TRIG, GPIO.OUT)
GPIO.setup(ECHO, GPIO.IN)
GPIO.setup(LED_R, GPIO.OUT)
GPIO.setup(LED_G, GPIO.OUT)

def getDistance():
    GPIO.output(TRIG, False)
    time.sleep(1) #1초마다 값을 냄
    GPIO.output(TRIG, True)
    time.sleep(0.00001)
    GPIO.output(TRIG, False)

    while GPIO.input(ECHO) == 0:
        pulse_start = time.time()
    while GPIO.input(ECHO) == 1:
        pulse_end = time.time()

    pulse_duration = pulse_end - pulse_start
    distance= round(pulse_duration*17150,2)

    return distance

if __name__ == '__main__':
    try:
        while True:
            distance_value = getDistance()
            if distance_value > 2 and distance_value < 300:
                print("Distance is %.2f cm"%distance_value)
                GPIO.output(LED_G, GPIO.HIGH)
                GPIO.output(LED_R, GPIO.LOW)
            else:
                print("Out of Range")
                GPIO.output(LED_R, GPIO.HIGH)
                GPIO.output(LED_G, GPIO.LOW)

    except KeyboardInterrupt:
       GPIO.output(LED_R, GPIO.LOW)
       GPIO.output(LED_G, GPIO.LOW)
       GPIO.cleanup()



---

2. 온습도 센서 사용하기

온습도 센서 DHT - 11 (온습도센서에 따라 순서가 다름)

devicemart.blogspot.com/2019/06/dht-11.html

[흥프로] 라즈베리파이 실습 예제 온습도 센서 DHT - 11 사용하기

- Adafruit_DHT 라이브러리 설치

git clone https://github.com/adafruit/Adafruit_Python_DHT.git

cd Adafruit_Python_DHT

sudo python setup.py install

-코드 입력 (gpio_tem.py 파일)

import time
import Adafruit_DHT
sensor = Adafruit_DHT.DHT11
pin = 4
try:
    while True :
        h, t = Adafruit_DHT.read_retry(sensor, pin) # h,t-> 습도, 온도/ 순서 바뀌면 값도 바뀜
        if h is not None and t is not None :
            print("Temperature = {0:0.1f}*C Humidity = {1:0.1f}%".format(t, h))
        else :
            print('Read error')
        time.sleep(1)
except KeyboardInterrupt:
    print("Terminated by Keyboard")

finally:
    print("End of Program")

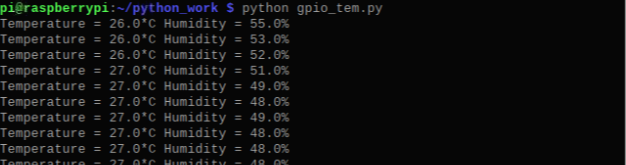

-실행 결과

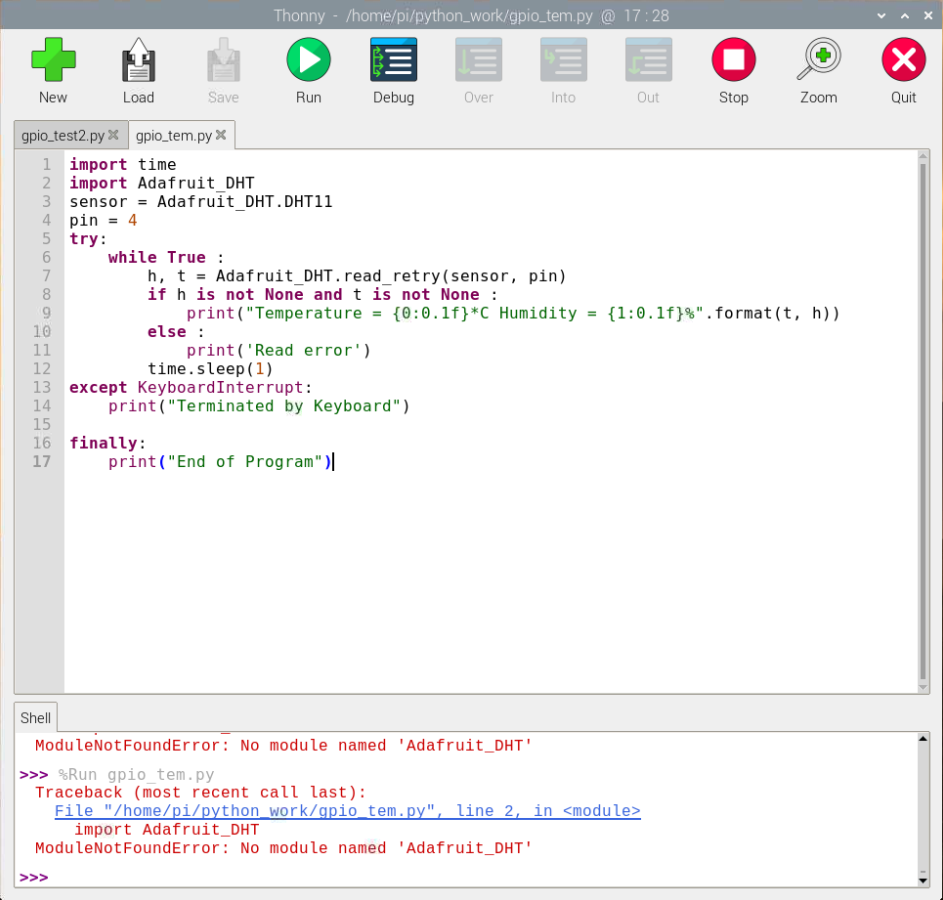

여기까지 하면 python 창에서 실행이 안 됨.

그래서



www.sharedit.co.kr/posts/8407

라즈베리파이4로 온습도 모니터링 해보자

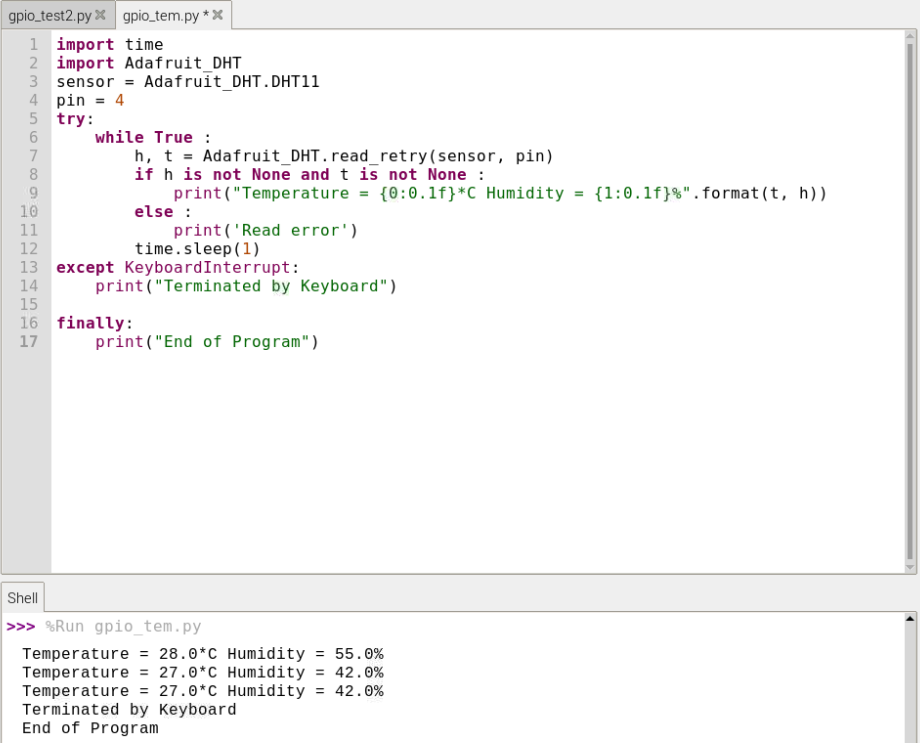

- 추가로 설치하였음.

sudo pip3 install Adafruit_DHT





- sudo pip3 install Adafruit_DHT 설치해줘서 밑에 Adafruit_Python_DHT 폴더 삭제해도 됨



---
