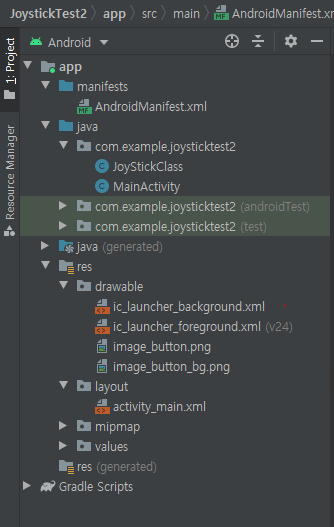

<AndroidManifest.xml>
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.example.joysticktest2">
<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:roundIcon="@mipmap/ic_launcher_round"
android:supportsRtl="true"
android:theme="@style/Theme.JoystickTest2">
<activity android:name=".MainActivity">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
</manifest><activity_main.xml>

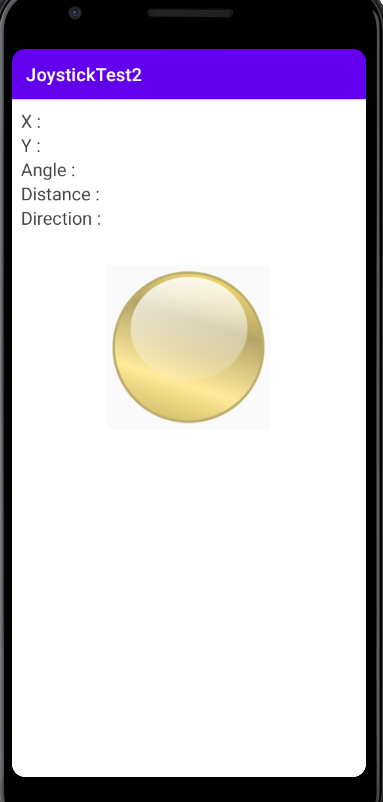

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">
<LinearLayout
android:id="@+id/linearLayout1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_alignParentTop="true"
android:layout_margin="10dp"
android:orientation="vertical" >
<TextView
android:id="@+id/textView1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_alignParentTop="true"
android:text="X"
android:textColor="#444444"
android:textSize="20dp" />
<TextView
android:id="@+id/textView2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_below="@+id/textView1"
android:text="Y"
android:textColor="#444444"
android:textSize="20dp" />
<TextView
android:id="@+id/textView3"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_below="@+id/textView2"
android:text="Angle"
android:textColor="#444444"
android:textSize="20dp" />
<TextView
android:id="@+id/textView4"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_below="@+id/textView3"
android:text="Distance"
android:textColor="#444444"
android:textSize="20dp" />
<TextView
android:id="@+id/textView5"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_below="@+id/textView3"
android:text="Direction"
android:textColor="#444444"
android:textSize="20dp" />
</LinearLayout>
<RelativeLayout
android:id="@+id/layout_joystick"
android:layout_width="200dp"
android:layout_height="200dp"
android:layout_below="@+id/linearLayout1"
android:layout_centerHorizontal="true"
android:layout_marginTop="29dp"
android:background="@drawable/image_button_bg" >
</RelativeLayout>
</RelativeLayout><MainActivity.java>
package com.example.joysticktest2;
import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.view.MotionEvent;
import android.view.View;
import android.widget.ImageView;
import android.widget.RelativeLayout;
import android.widget.TextView;
public class MainActivity extends AppCompatActivity {
RelativeLayout layout_joystick;
ImageView image_joystick, image_border;
TextView textView1, textView2, textView3, textView4, textView5;
JoyStickClass js;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
textView1 = (TextView) findViewById(R.id.textView1);
textView2 = (TextView) findViewById(R.id.textView2);
textView3 = (TextView) findViewById(R.id.textView3);
textView4 = (TextView) findViewById(R.id.textView4);
textView5 = (TextView) findViewById(R.id.textView5);
layout_joystick = (RelativeLayout) findViewById(R.id.layout_joystick);
js = new JoyStickClass(getApplicationContext(), layout_joystick, R.drawable.image_button);
js.setStickSize(150, 150);
js.setLayoutSize(500, 500);
js.setLayoutAlpha(150);
js.setStickAlpha(100);
js.setOffset(90);
js.setMinimumDistance(50);
layout_joystick.setOnTouchListener(new View.OnTouchListener() {
public boolean onTouch(View arg0, MotionEvent arg1) {
js.drawStick(arg1);
if (arg1.getAction() == MotionEvent.ACTION_DOWN
|| arg1.getAction() == MotionEvent.ACTION_MOVE) {
textView1.setText("X : " + String.valueOf(js.getX()));
textView2.setText("Y : " + String.valueOf(js.getY()));
textView3.setText("Angle : " + String.valueOf(js.getAngle()));
textView4.setText("Distance : " + String.valueOf(js.getDistance()));
int direction = js.get8Direction();
if (direction == JoyStickClass.STICK_UP) {
textView5.setText("Direction : Up");
} else if (direction == JoyStickClass.STICK_UPRIGHT) {
textView5.setText("Direction : Up Right");
} else if (direction == JoyStickClass.STICK_RIGHT) {
textView5.setText("Direction : Right");
} else if (direction == JoyStickClass.STICK_DOWNRIGHT) {
textView5.setText("Direction : Down Right");
} else if (direction == JoyStickClass.STICK_DOWN) {
textView5.setText("Direction : Down");
} else if (direction == JoyStickClass.STICK_DOWNLEFT) {
textView5.setText("Direction : Down Left");
} else if (direction == JoyStickClass.STICK_LEFT) {
textView5.setText("Direction : Left");
} else if (direction == JoyStickClass.STICK_UPLEFT) {
textView5.setText("Direction : Up Left");
} else if (direction == JoyStickClass.STICK_NONE) {
textView5.setText("Direction : Center");
}
} else if (arg1.getAction() == MotionEvent.ACTION_UP) {
textView1.setText("X :");
textView2.setText("Y :");
textView3.setText("Angle :");
textView4.setText("Distance :");
textView5.setText("Direction :");
}
return true;
}
});
}
}<JoyStickClass.java>
package com.example.joysticktest2;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.view.MotionEvent;
import android.view.View;
import android.view.ViewGroup;
import android.view.ViewGroup.LayoutParams;
public class JoyStickClass {
public static final int STICK_NONE = 0;
public static final int STICK_UP = 1;
public static final int STICK_UPRIGHT = 2;
public static final int STICK_RIGHT = 3;
public static final int STICK_DOWNRIGHT = 4;
public static final int STICK_DOWN = 5;
public static final int STICK_DOWNLEFT = 6;
public static final int STICK_LEFT = 7;
public static final int STICK_UPLEFT = 8;
private int STICK_ALPHA = 200;
private int LAYOUT_ALPHA = 200;
private int OFFSET = 0;
private Context mContext;
private ViewGroup mLayout;
private LayoutParams params;
private int stick_width, stick_height;
private int position_x = 0, position_y = 0, min_distance = 0;
private float distance = 0, angle = 0;
private DrawCanvas draw;
private Paint paint;
private Bitmap stick;
private boolean touch_state = false;
public JoyStickClass (Context context, ViewGroup layout, int stick_res_id) {
mContext = context;
stick = BitmapFactory.decodeResource(mContext.getResources(), stick_res_id);
stick_width = stick.getWidth();
stick_height = stick.getHeight();
draw = new DrawCanvas(mContext);
paint = new Paint();
mLayout = layout;
params = mLayout.getLayoutParams();
}
public void drawStick(MotionEvent arg1) {
position_x = (int) (arg1.getX() - (params.width / 2));
position_y = (int) (arg1.getY() - (params.height / 2));
distance = (float) Math.sqrt(Math.pow(position_x, 2) + Math.pow(position_y, 2));
angle = (float) cal_angle(position_x, position_y);
if(arg1.getAction() == MotionEvent.ACTION_DOWN) {
if(distance <= (params.width / 2) - OFFSET) {
draw.position(arg1.getX(), arg1.getY());
draw();
touch_state = true;
}
} else if(arg1.getAction() == MotionEvent.ACTION_MOVE && touch_state) {
if(distance <= (params.width / 2) - OFFSET) {
draw.position(arg1.getX(), arg1.getY());
draw();
} else if(distance > (params.width / 2) - OFFSET){
float x = (float) (Math.cos(Math.toRadians(cal_angle(position_x, position_y)))
* ((params.width / 2) - OFFSET));
float y = (float) (Math.sin(Math.toRadians(cal_angle(position_x, position_y)))
* ((params.height / 2) - OFFSET));
x += (params.width / 2);
y += (params.height / 2);
draw.position(x, y);
draw();
} else {
mLayout.removeView(draw);
}
} else if(arg1.getAction() == MotionEvent.ACTION_UP) {
mLayout.removeView(draw);
touch_state = false;
}
}
public int[] getPosition() {
if(distance > min_distance && touch_state) {
return new int[] { position_x, position_y };
}
return new int[] { 0, 0 };
}
public int getX() {
if(distance > min_distance && touch_state) {
return position_x;
}
return 0;
}
public int getY() {
if(distance > min_distance && touch_state) {
return position_y;
}
return 0;
}
public float getAngle() {
if(distance > min_distance && touch_state) {
return angle;
}
return 0;
}
public float getDistance() {
if(distance > min_distance && touch_state) {
return distance;
}
return 0;
}
public void setMinimumDistance(int minDistance) {
min_distance = minDistance;
}
public int getMinimumDistance() {
return min_distance;
}
public int get8Direction() {
if(distance > min_distance && touch_state) {
if(angle >= 247.5 && angle < 292.5 ) {
return STICK_UP;
} else if(angle >= 292.5 && angle < 337.5 ) {
return STICK_UPRIGHT;
} else if(angle >= 337.5 || angle < 22.5 ) {
return STICK_RIGHT;
} else if(angle >= 22.5 && angle < 67.5 ) {
return STICK_DOWNRIGHT;
} else if(angle >= 67.5 && angle < 112.5 ) {
return STICK_DOWN;
} else if(angle >= 112.5 && angle < 157.5 ) {
return STICK_DOWNLEFT;
} else if(angle >= 157.5 && angle < 202.5 ) {
return STICK_LEFT;
} else if(angle >= 202.5 && angle < 247.5 ) {
return STICK_UPLEFT;
}
} else if(distance <= min_distance && touch_state) {
return STICK_NONE;
}
return 0;
}
public int get4Direction() {
if(distance > min_distance && touch_state) {
if(angle >= 225 && angle < 315 ) {
return STICK_UP;
} else if(angle >= 315 || angle < 45 ) {
return STICK_RIGHT;
} else if(angle >= 45 && angle < 135 ) {
return STICK_DOWN;
} else if(angle >= 135 && angle < 225 ) {
return STICK_LEFT;
}
} else if(distance <= min_distance && touch_state) {
return STICK_NONE;
}
return 0;
}
public void setOffset(int offset) {
OFFSET = offset;
}
public int getOffset() {
return OFFSET;
}
public void setStickAlpha(int alpha) {
STICK_ALPHA = alpha;
paint.setAlpha(alpha);
}
public int getStickAlpha() {
return STICK_ALPHA;
}
public void setLayoutAlpha(int alpha) {
LAYOUT_ALPHA = alpha;
mLayout.getBackground().setAlpha(alpha);
}
public int getLayoutAlpha() {
return LAYOUT_ALPHA;
}
public void setStickSize(int width, int height) {
stick = Bitmap.createScaledBitmap(stick, width, height, false);
stick_width = stick.getWidth();
stick_height = stick.getHeight();
}
public void setStickWidth(int width) {
stick = Bitmap.createScaledBitmap(stick, width, stick_height, false);
stick_width = stick.getWidth();
}
public void setStickHeight(int height) {
stick = Bitmap.createScaledBitmap(stick, stick_width, height, false);
stick_height = stick.getHeight();
}
public int getStickWidth() {
return stick_width;
}
public int getStickHeight() {
return stick_height;
}
public void setLayoutSize(int width, int height) {
params.width = width;
params.height = height;
}
public int getLayoutWidth() {
return params.width;
}
public int getLayoutHeight() {
return params.height;
}
private double cal_angle(float x, float y) {
if(x >= 0 && y >= 0)
return Math.toDegrees(Math.atan(y / x));
else if(x < 0 && y >= 0)
return Math.toDegrees(Math.atan(y / x)) + 180;
else if(x < 0 && y < 0)
return Math.toDegrees(Math.atan(y / x)) + 180;
else if(x >= 0 && y < 0)
return Math.toDegrees(Math.atan(y / x)) + 360;
return 0;
}
private void draw() {
try {
mLayout.removeView(draw);
} catch (Exception e) { }
mLayout.addView(draw);
}
private class DrawCanvas extends View {
float x, y;
private DrawCanvas(Context mContext) {
super(mContext);
}
public void onDraw(Canvas canvas) {
canvas.drawBitmap(stick, x, y, paint);
}
private void position(float pos_x, float pos_y) {
x = pos_x - (stick_width / 2);
y = pos_y - (stick_height / 2);
}
}
}
'Android' 카테고리의 다른 글
| 안드로이드 -ReclyerView (0) | 2020.11.06 |
|---|---|
| 라즈베리 파이 연동) led on/off (0) | 2020.11.05 |
| 안드로이드- 회전시 데이터 유지하기 (0) | 2020.11.05 |
| 안드로이드- 회전시 데이터 유지하기 (0) | 2020.11.05 |
| 안드로이드- 글 적고 저장 누르면 다시 실행시켰을 때 저장됨 (0) | 2020.11.05 |
